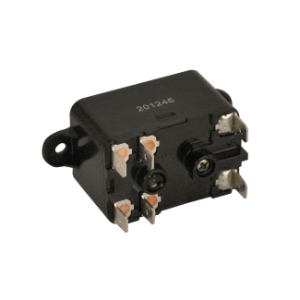

Mars® 90370 Heavy Duty Fan Relay, 12 A, 1 Form C SPDT Contact, 24 V AC V Coil
| Brand | Mars® |
| MFR Part No | GFR-370 |
| TSCO Part Number | 1294068 |
- Features
- Specifications
- Documents
Features
- 1/4 in quick - connect terminal
- Packaged with instructions and cross reference
- Replaces WR/Essex/RBM type 184
Standard Approvals
- CSA Certified
- UL Listed
- PROP65: Cancer and Reproductive Harm www.P65Warinings.ca.gov.
Amperage Rating:
12 A
Coil Voltage:
24 V AC
Contact Form:
1 Form C SPDT
Contact Rating:
12 FLA/60 LRA/18 A at 120 V, 8 FLA/48 LRA/18 A at 240, 7 FLA/42 LRA/18 A at 277 V
Dimensions:
2.056 in W x 2.5 in H
Frequency Rating:
60 Hz
Mounting Type:
Surface
Number of Poles:
1
Terminal Type:
Quick-Connect
Type:
Heavy Duty
