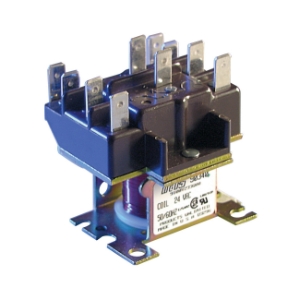

Mars® 90340 General Purpose Switching Relay, 15 A, 2 Form C DPDT Contact, 24 V AC Coil
| Brand | Mars® |
| MFR Part No | GFR-340 |
| TSCO Part Number | 1294031 |
- Features
- Specifications
- Documents
Features
- Replaces Honeywell and White - Rodgers/RBM - cross reference on package
- Double quick - connect terminals on coil
- Base designed for easy replacement of competitive relays
- Molded terminal numbers and circuit diagram on top of relay
Standard Approvals
- CSA Certified
- UL Listed
- PROP65: Cancer and Reproductive Harm www.P65Warinings.ca.gov.
Amperage Rating:
15 A
Coil Voltage:
24 V AC
Contact Form:
2 Form C DPDT
Contact Rating:
3/4 hp 12 FLA/15 A/60 LRA at 120 V, 3/4 hp 6 FLA/15 A/35 LRA at 208/240 V
Dimensions:
2.13 in L x 1.88 in W x 2.25 in H
Frequency Rating:
50/60 Hz
Number of Poles:
2
Terminal Type:
Double Quick-Connect
