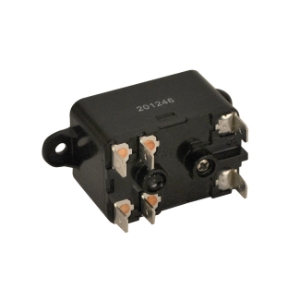

Mars® 90294 903 Power Fan Relay, 1 Form C SPDT Contact, 110 to 120 V AC V Coil
| Brand | Mars® |
| MFR Part No | GFR-294 |
| TSCO Part Number | 1294013 |
- Features
- Specifications
- Documents
Features
- 1/4 in quick - connect terminal
- Packaged with instructions and cross reference
- Replace 90 - 290 thru 90 - 295 and 90 - 290Q thru 90 - 295Q
Standard Approvals
- CSA Certified
- UL Listed
- PROP65: Cancer and Reproductive Harm www.P65Warinings.ca.gov.
Coil Voltage:
110 to 120 V AC
Contact Form:
1 Form C SPDT
Contact Rating:
12 FLA/60 LRA/18 A at 120 V, 8 FLA/48 LRA/18 A at 240, 7 FLA/42 LRA/18 A at 277 V
Dimensions:
2.38 in L x 1.63 in W x 1.50 in H
Frequency Rating:
60 Hz
Mounting Type:
Flange
Number of Poles:
1
Terminal Type:
Quick-Connect/Screw
