Moen®

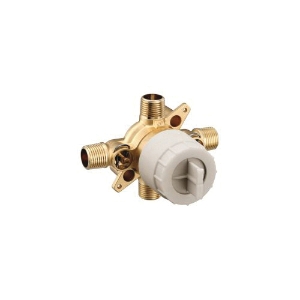

Moen® M-Pact® M-Core™ U140CIS 4-Port Rough-In Valve, 1/2 in CC/IPS Inlet x 1/2 in CC/IPS Outlet, 200 psi Air/300 psi Water Pressure, Brass Body
Moen®

Moen® M-Pact® M-Core™ U140CIS 4-Port Rough-In Valve, 1/2 in CC/IPS Inlet x 1/2 in CC/IPS Outlet, 200 psi Air/300 psi Water Pressure, Brass Body

BrandMoen®
MFR Part NoU140CIS
TSCO Part Number694476

Warranty Length

  • Lifetime Limited Against Leaks, Drips and Finish Defects to the Original Homeowner/10 years Limited for Multifamily Installation/5 years Limited for Commercial Installation

Features

  • Built on the Moen® M-Pact™ common valve system, allowing you to update the faucet style in the future without replacing any plumbing
  • M-CORE valves, with 3-Series trim, have pressure-balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home
  • Feature volume control, allowing you to adjust the flow of water for greater functionality
  • M-CORE 3-Series offers a full line of finish, style and platform options for every shower configuration
  • Offers design flexibility to choose your trim after the valve installation, so you can take your time with your style and finish selections
  • M-CORES adaptability allows the valves to be roughed-in with the option of functionality and style changes that dont require removing or changing the valve(s)
  • Features an integrated mounting bracket that secures the valve directly to a brace, streamlining the installation process and saving time
  • M-CORE mixing and transfer valves are available in several inlet and outlet plumbing options to meet the needs of the installers

Standard Approvals

  • ASME A112.18.1
  • ASSE Listed
  • CSA B125.1
