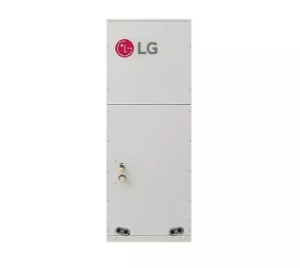

LG LVN241HV4 Multi F Vertical Air Handling Unit, 27000 Btu/hr Heating, 24000 Btu/hr Cooling, 208-230 V, 1 Phase, 60 Hz, 19.5 SEER, 12 EER, R410A
| Brand | LG |
| MFR Part No | LVN241HV4 |
| TSCO Part Number | 555838 |
- Features
- Specifications
- Documents
Features
- W2 terminal connection
- Hot Start
- Self diagnostics
- Soft dry (dehumidification)
- Weekly schedule
- Controller sold separately
- Inverter (variable speed fan)
- Group control
- Sleep Mode
- Timer (on/off)
- Integrated dry contact for 3rd party thermostat
- ECM fan provides constant airflow regardless of permitted ESP
Standard Approvals
- AHRI Certified
- CSA Certified
Compressor Type:
Twin Rotary
Cooling Capacity:
24000 Btu/hr
Dimensions:
32-27/32 in H x 37-13/32 in W x 13 in D
EER Rating:
12
Flow Rate:
710 cfm
Fuse Size:
16.2 A
Heating Capacity:
27000 Btu/hr
HSPF Rating:
11
Maximum Piping Length:
164 ft
Mounting Type:
Vertical
Power Source:
208/230 VAC, 1 ph, 60 Hz
Refrigerant Type:
R-410A
SEER Rating:
19.5
Sound Level:
52 dBA
Suction Line Size:
1/4 in
