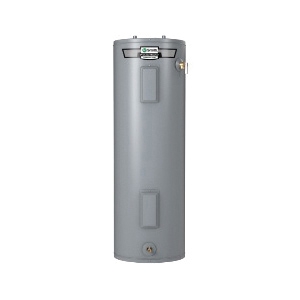

AO Smith® ProLine® 100274385 HNT-55 Electric Water Heater, 55 gallon Tank, 9000 W Power Rating, 240 VAC, 1 phase, Tall
Brand | AO Smith® |
MFR Part No | HNT-55 |
TSCO Part Number | 555289 |
- Features
- Specifications
- Documents
Warranty Length
- 6 Years Limited Tank and Parts
Features
- Helps reduce lime and sediment buildup and maximizes hot water output
- Made from long-lasting PEX cross-linked polymer (diffuser design is not used on lowboy models)
- Eco-friendly non-CFC foam insulation, heat traps and other features combine to yield a higher Energy Factor that maximizes savings on operating costs
- Our anode rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rods
- Provides superior corrosion resistance compared to industry standard glass lining
- Our residential water heaters have a solid brass, tamper resistant, enhanced-flow, ball type, drain valve
- Uses a standard female hose fitting that allows for fast and easy draining during maintenance
- Designed for easy operation, this valve includes an integral screwdriver slot that features a 1/4 turn (open/close) radius, which not only permits full straight-through water flow but also a quick and positive shut off
Standard Approvals
- ASHRAE/IESNA 90.1
- CSA Certified
- CSA Certified and ASME Specified T&P Relief Valve
- UL Listed
- Meets UBC and ICC National Codes and listed with CEC
- Federal Energy Conservation Standards with Energy Policy and Conservation Act (EPCA)
ASME Yes/No:
No
Energy Efficiency:
0.93
Fuel Type:
Electric
Power Rating:
9000 W
Pressure Rating:
150 psi
Recovery Rate:
21 gph at 90 deg F Rise
Tall or Short:
Tall
Tank Capacity:
55 gal
Voltage Rating:
240 VAC
Water Connection:
3/4 in MNPT
Number of Phases:
1 Phase
