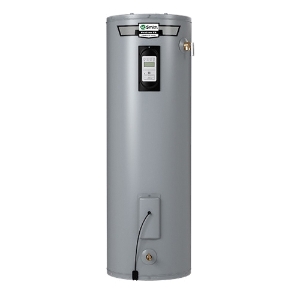

AO Smith® ProLine® XE 100309220 Commercial-Grade Electric Water Heater, 55 gal Tank, 240 VAC, 5.5 kW Power Rating, 1 Phase, Tall
| Brand | AO Smith® |
| MFR Part No | 100309220 |
| TSCO Part Number | 553247 |
- Features
- Specifications
- Documents
Warranty Length
- 10 years Limited Tank/Parts
Features
- Leak detection sensor sounds an audible alarm when water is detected
- Dual 5500 W elements for the fastest recovery and reliable operation
- Eco-friendly non-CFC foam insulation, heat traps and other features combine to yield a higher Uniform ENERGY FACTOR® that maximizes savings on operating costs
- self-cleaning dip tube help reduce lime and sediment buildup and maximize hot water output and is made from long lasting PEX cross linked polymer
- ProLine® XE electronic display
- Magnesium anode rod
Standard Approvals
- ASHRAE/IES 90.1
- ASME Specified T and P Relief Valve
- CSA Certified
- Meets UBC, CEC and HUD National Codes
- Federal Energy Conservation Standard with Energy Policy and Conservation Act (EPCA)
- UL 174
ASME Yes/No:
No
Energy Factor:
0.92
Fuel Type:
Electric
Heating Element:
(2) Incoloy® Stainless Steel
Phase:
1
Power Rating:
5.5 kW
Pressure Rating:
150 psi
Recovery Rate:
25 gph at 90 deg F Rise
Tall or Short:
Tall
Tank Capacity:
55 gal
Type:
Commercial-Grade
Voltage Rating:
240 VAC
Water Connection:
3/4 in
