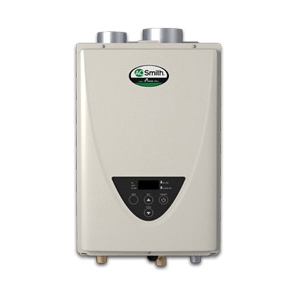

AO Smith® ProLine® XE 100227704 ATI-310U Tankless Water Heater, Natural Gas Fuel, 190000 Btu/hr Heating, Indoor, Non-Condensing, 8 gpm Flow Rate, Direct/Power Vent, 3 or 4 in Vent, 0.82, Commercial/Residential
| Brand | AO Smith® |
| MFR Part No | 100227704 |
| TSCO Part Number | 547574 |
- Features
- Specifications
- Documents
Warranty Length
- 15 Years Limited on Heat Exchanger in Residential Application/5 Years Limited on Heat Exchanger in Commercial Application and 5 Years Limited on All Parts
Features
- Built-in freeze protection
- Manual reset hi limit (up to 194 deg F)
- Overheat cutoff fuse
- Inlet and outlet thermistors for constant temperature monitoring
- Air fuel ratio rod
- Flame sensor
- 4 in category III stainless steel
- 3 in combustion air intake
- 60 ft max length, 6 elbows max
- Indoor models include a built-in temperature controller and a factory-installed power cord as standard features
- Indoor models are certified from sea level from 0 to 10100 ft elevations
- Copper heat exchanger - 25x better heat transfer than stainless steel thus stabilizing outgoing water temperature quicker and reducing pressure drop across the heat exchanger
Standard Approvals
- ANSI Z21.10.3 AHRI Certified
- CSA Certified
- Low Lead IAPMO R and T
- SCAQMD Rule 1146.2
Commercial/Residential/Dual:
Commercial/Residential
Condensing/Non Condensing:
Non-Condensing
Energy Factor:
0.82
Flow Rate:
8 gpm
Fuel Type:
Natural Gas
Gas Connection:
3/4 in NPT
Heating Capacity:
190000 Btu/hr
Height:
28"
Ignition Type:
Electronic Spark
Indoor/Outdoor:
Indoor
Length:
16.625"
Pressure Rating:
15 to 150 psi
Ultra Low NOx:
Yes
Vent Size:
3 or 4 in
Vent Type:
Direct/Power
Water Connection:
3/4 in NPT
Width:
12.375"
Height:
28"
