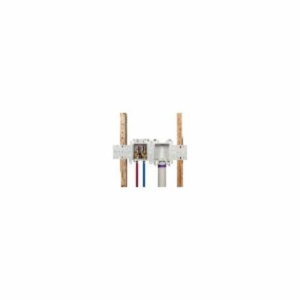

Oatey® MODA® 37614 2-Valve + Standard Drain Washing Machine Outlet Box with Hammer Arrestor, F1960
| Brand | Oatey® |
| MFR Part No | 37614 |
| TSCO Part Number | 458764 |
- Features
- Specifications
- Documents
Features
- Using a single box platform provides significant convenience to installers
- One universal faceplate is compatible with all box types
- All boxes can snap to one another and common brackets can be used on any MODA™ supply box
- Unique interlocking wing flanges accommodate on-stud, straddle-stud and three-box installations
- Advanced snap-lock design allows assembly and disassembly with equal ease, for quicker installation and easy repositioning on the job
- Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply/drain crossovers
- Dual box design provides ideal options for stacked washer/dryers and space-limited laundry rooms
- Plumber-preferred, quarter turn test plug with gasket provided with every drain box
- This means no knock outs falling into drains and no tools required
- Oatey® exclusive feature
- Stands up to the roughest job site abuse and no transition cement needed when solvent welding PVC pipe
- Two piece valve design makes valve replacement easy to repair, without damaging drywall
- Valves rated to 150 psi air and 250 psi water
- Faceplates are pre-assembled on box
Standard Approvals
- ASME A112.18.1/CSA B125.1
- ASSE 1010
- ASTM C37700/F1960
- IAPMO Listed
- PS-54
- UPC Listed
- PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Videos
Material:
PVC
