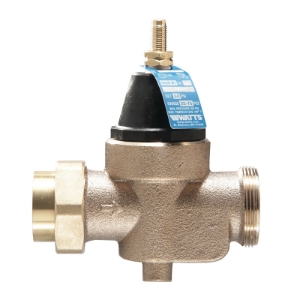

WATTS® 0009478 LFN45B Pressure Reducing Valve, 3/4 in Nominal, FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body
| Brand | WATTS® |
| MFR Part No | 0009478 |
| TSCO Part Number | 457897 |
- Features
- Specifications
- Documents
Warranty Length
- 1 Year Limited
Features
- Sealed spring cage on all models for accessible outdoor or pit installations
- Integral stainless steel strainer removable for cleaning
- Serviceable in line
- Bypass feature controls thermal expansion pressure
Standard Approvals
- ANSI A112.26.2
- ASSE Standard 1003
- City of Los Angeles
- CSA Standard B356
- IAPMO Listed
- NSF to ANSI/NSF Standard 61 Annex G Certified
- PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Body Material:
Cast Copper Silicon Alloy
Domestic/Import:
Domestic
End Style:
FNPT
Inlet to Outlet Length:
3-7/16 in
Media:
Water
Nominal Size:
3/4 in
Pressure Range:
25 to 75 psi
Softgoods Material:
Thermoplastic Seat/Reinforced EPDM Diaphragm
Temperature Rating:
33 to 180 deg F
Top to Inlet Center:
4-9/16 in
Type:
Lead Free
