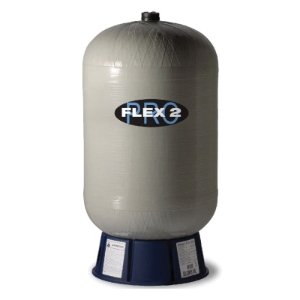

Flexcon H2PL22 Flex2Pro Lite H2PL Composite Well Tank, MNPT Discharge, 22 gal, 1 in Discharge, 16-1/2 in Dia Overall, 125 psi
| Brand | Flexcon |
| MFR Part No | H2PL-22 |
| TSCO Part Number | 451678 |
- Features
- Specifications
- Documents
Warranty Length
- 5 Years Limited
Features
- Injection molded copolymer polypropylene top and bottom domes
- Fiberglass wound coated with epoxy resin
- Patented CAD-2 design with 100% butyl rubber top diaphragm, lower water chamber is copolymer polypropylene
- Copolymer polypropylene base
- Rigid PVC Connection
- Easy to access brass air valve with O-ring seal
- Minimal condensation with independent CAD2 water chamber
Standard Approvals
- American Ground Water Trust
- cUSA Listed
- NSF/ANSI 61
- TUV Certified
- Water System Council
Capacity:
22 gal
Discharge Connection Type:
MNPT
Discharge Size:
1 in
Height:
34.1 in
Material:
Polypropylene
Max Acceptance Factor:
8.8
Overall Diameter:
16-1/2 in
Precharge Rating:
38 psi
Pressure Rating:
125 psi
Height:
34.1"
