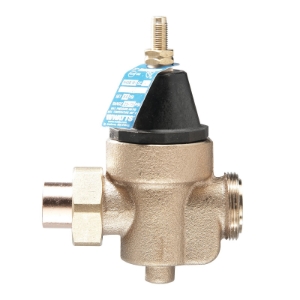

WATTS® 0009480 LFN45B Standard Capacity Pressure Reducing Valve, 3/4 in Nominal, Solder Union Inlet x FNPT Outlet End Style, 25 to 75 psi Pressure, Copper Silicon Alloy Body
| Brand | WATTS® |
| MFR Part No | 0009480 |
| TSCO Part Number | 429600 |
- Features
- Specifications
- Documents
Warranty Length
- 1 year
Features
- Integral stainless steel strainer removable for cleaning
- Serviceable in line
- Sealed spring cage on all models for accessible outdoor or pit installations
- Elastomer disc
Standard Approvals
- ASSE 1003
- ANSI A112.26.2
- CSA B356
- IAPMO Listed
- NSF/ANSI 61-G
- UPC Listed
- PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Body Material:
Copper Silicon Alloy
Domestic/Import:
Domestic
End Style:
Solder Union Inlet x FNPT Outlet
Media:
Water
Nominal Size:
3/4 in
Pressure Range:
25 to 75 psi
Softgoods Material:
Thermoplastic Seat/Reinforced EPDM Diaphragm
Temperature Rating:
33 to 180 deg F
Top to Inlet Center:
4-9/16 in
