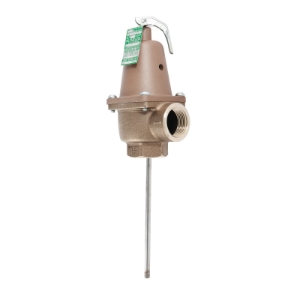

WATTS® 0556019 LFN240 Automatic Reseating Temperature/Pressure Relief Valve, 1 in Nominal, FNPT End Style, 113 psi Pressure, Bronze Body
| Brand | WATTS® |
| MFR Part No | 0556019 |
| TSCO Part Number | 429595 |
- Features
- Specifications
- Documents
Warranty Length
- Limited
Features
- 150 psi pressure relief setting
- 4285000 Btu/hr pressure steam discharge capacity
- Test lever
- 730000 Btu/hr temperature steam discharge capacity
- 6 in thermostat probe L
- Non-mechanical seat-to-disc alignment
- Tamper-resistant bonnet screws
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- 75 to 150 psi pressure range
- Furnished with stainless steel thermostat tube
Standard Approvals
- ANSI Z21.22
- ASSE Listed
- FM Approved
- MIL-V-136-12D Type I
- NSF Approved
- UL Listed
- ULC Listed
- USC Certified
- WQA Certified
- PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Body Material:
Bronze
Domestic/Import:
Domestic
End Style:
FNPT
Nominal Size:
1 in
Pressure Rating:
113 psi
Series:
LFN240
Temperature Rating:
210 deg F
