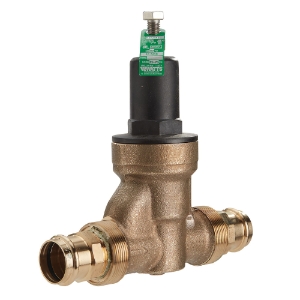

WATTS® 0125582 LFN45B Standard Capacity Pressure Reducing Valve, 2 in Nominal, Viega ProPress® End Style, 300 psi Pressure, Copper Silicon Alloy Body
WATTS®

WATTS® 0125582 LFN45B Standard Capacity Pressure Reducing Valve, 2 in Nominal, Viega ProPress® End Style, 300 psi Pressure, Copper Silicon Alloy Body

BrandWATTS®
MFR Part No0125582
TSCO Part Number429526

Warranty Length

  • Limited

Features

  • Viega ProPress (R) connections
  • Integral stainless steel strainer removable for cleaning
  • Thermoplastic seat and cage
  • Sealed spring cage for accessible outdoor or pit installations
  • Bypass feature controls thermal expansion pressure
  • EPDM diaphragm
  • The bypass feature will not prevent the pressure relief valve from opening on the hot water supply system with pressure above 150 psi
  • A water saving test program concluded that reducing the supply pressure from 80 to 50 psi (551 to 345 kPa) resulted in a water savings of 30%
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • 25 to 75 psi adjustable reduced pressure

Standard Approvals

  • ASSE 1003
  • ANSI A112.26.2
  • CSA B356
  • IAPMO Listed
  • NSF/ANSI 61-G
  • PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
