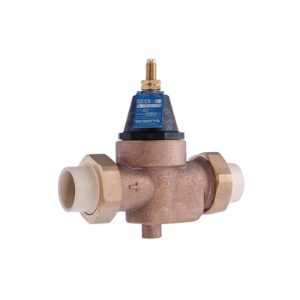

WATTS® 0009496 LFN45B Pressure Reducing Valve, 1 in Nominal, Double Union End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body
| Brand | WATTS® |
| MFR Part No | 0009496 |
| TSCO Part Number | 429507 |
- Features
- Specifications
- Documents
Features
- Serviceable in line
- Sealed spring cage on all models for accessible outdoor or pit installations
- Reinforced EPDM diaphragm
- Integral stainless steel strainer removable for cleaning
Standard Approvals
- ANSI A112.26.2
- ASSE 1003
- ANSI/NSF 61Annex G
- CSA B356
- IAPMO Listed
- PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Body Material:
Cast Copper Silicon Alloy
Domestic/Import:
Domestic
End Style:
Double Union
Inlet to Outlet Length:
4-1/8 in
Media:
Water
Nominal Size:
1 in
Pressure Range:
25 to 75 psi
Softgoods Material:
Thermoplastic Seat
Temperature Rating:
33 to 180 deg F
