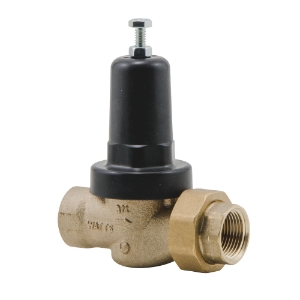

WATTS® 0125561 LFRC105 Pressure Reducing Valve, 3/4 in Nominal, NPT Inlet x FNPT Union Outlet End Style, 25 to 75 psi Pressure, Copper Silicon Alloy Body
| Brand | WATTS® |
| MFR Part No | 0125561 |
| TSCO Part Number | 429503 |
- Features
- Specifications
- Documents
Warranty Length
- 1 year
Features
- Thermoplastic seat and cage
- Compact design and footprint
- Integral stainless steel strainer removable for cleaning
- Serviceable in line
- Short lay lengths
Standard Approvals
- ASSE 1003
- ANSI A112.26.2
- ANSI/NSF 61-G
- ASTM F877
- CSA B356
- PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Body Material:
Copper Silicon Alloy
Domestic/Import:
Import
End Style:
NPT Inlet x FNPT Union Outlet
Inlet to Outlet Length:
3-15/16 in
Media:
Water
Nominal Size:
3/4 in
Pressure Range:
25 to 75 psi
Softgoods Material:
Reinforced EPDM Diaphragm
Temperature Rating:
33 to 180 deg F
Top to Inlet Center:
4-3/4 in
