1 LFN55BM1-US;PRESS.REG. PRESSURE
Part #:
429493
MFG #
0009640
Brand:
WATTS®
- Description
- Specifications
- Features

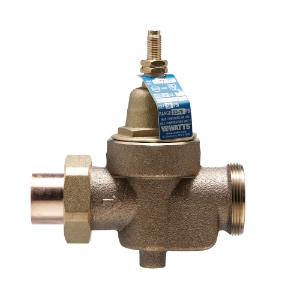

Pressure Reducing Valve, Series: LFN55B, 1 in Nominal, Solder Union x FNPT, 25 to 75 psi, 33 to 180 deg F, Media: Water, 4-7/8 in Inlet to Outlet Length, 4-9/16 in Top to Inlet Center, Brass Body, Thermoplastic Seat, Domestic
Body Material:
Brass
Domestic/Import:
Domestic
End Style:
Solder Union x FNPT
Inlet to Outlet Length:
4-7/8 in
Media:
Water
Nominal Size:
1 in
Softgoods Material:
Thermoplastic Seat
Temperature Rating:
33 to 180 deg F
Top to Inlet Center:
4-9/16 in
Features
Integral stainless steel strainer Serviceable in line Bypass feature controls thermal expansion pressure Sealed spring cage on all models for accessible outdoor or pit installations The wetted surface of this product contacted by consumable water contains less than one quarter of one percent (0.25%) of lead by weight The bypass feature will not prevent the pressure relief valve from opening on the hot water supply system with pressure above 150 psi 50 psi standard reduced pressure 25 to 75 psi adjustable reduced pressure range Solder union inlet x NPT female outlet The bypass feature will not prevent the pressure relief valve from opening on the hot water supply system with pressure above 150psi
Standard Approvals
ANSI A112.26.2|ANSI/NSF 61-G|ASSE 1003|CSA B356|IAPMO Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
