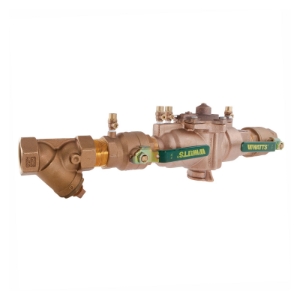

WATTS® 0122688 LF009 Reduced Pressure Zone Assembly, 1-1/4 in Nominal, NPT End Style, Quarter-Turn Ball Valve, Cast Copper Silicon Alloy Body
| Brand | WATTS® |
| MFR Part No | 0122688 |
| TSCO Part Number | 429440 |
- Features
- Specifications
- Documents
Warranty Length
- 1 year Limited
Features
- Lead-free bronze body construction for durability
- Quarter-turn full port resilient seated ball valve shutoffs
- Single access cover and modular check construction for easy of maintenance
- Top entry all internals immediately accessible
- Captured spring assemblies for safety
- Internal relief valve for reduced installation clearances
- Replaceable seats for economical repair
- Large body passages provides low pressure drop
- Compact space saving design
- Cast copper silicon alloy body construction for durability
Standard Approvals
- USC Certified
- PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Ball Valve/Gate Valve Type:
Quarter-Turn Ball Valve
Body Material:
Cast Copper Silicon Alloy
Domestic/Import:
Domestic
End Style:
NPT
Nominal Size:
1-1/4 in
Port Type:
Full
Pressure Rating:
175 psi
Temperature Rating:
33 to 180 deg F
