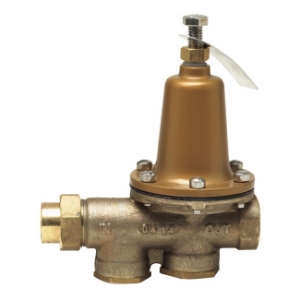

WATTS® 0009392 LF25AUB-Z3 Pressure Reducing Valve, 1-1/4 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body
| Brand | WATTS® |
| MFR Part No | 0009392 |
| TSCO Part Number | 429431 |
- Features
- Specifications
Warranty Length
- Limited
Features
- NPT threaded female union inlet by NPT female outlet
- Replaceable seat module
- Serviceable in line
- 50 Psi standard reduced pressure
- Reinforced EPDM with PTFE wetted surface diaphragm
- Integral stainless steel strainer removable for cleaning
Standard Approvals
- ANSI A112.26.2
- ASSE 1003
- CSA B356
- IAPMO Listed
- Southern Standard Plumbing Code
- PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Videos
Body Material:
Cast Copper Silicon Alloy
Domestic/Import:
Domestic
End Style:
FNPT Union x FNPT
Media:
Water
Nominal Size:
1-1/4 in
Pressure Range:
25 to 75 psi
Softgoods Material:
Stainless Steel
Temperature Rating:
33 to 160 deg F
