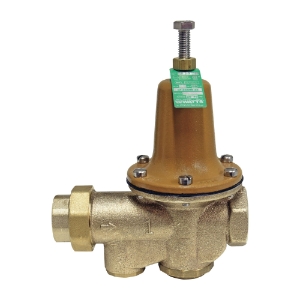

WATTS® 0009309 LF25AUB-Z3 Pressure Reducing Valve, 1 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body
| Brand | WATTS® |
| MFR Part No | 0009309 |
| TSCO Part Number | 429430 |
- Features
- Specifications
- Documents
Warranty Length
- 1 year Limited
Features
- Integral stainless steel strainer removable for cleaning
- Replaceable seat module
- Serviceable in line
- Bypass feature controls thermal expansion pressure
- Sealed spring cage with stainless steel cage screws
- Temperature range is 33 to 180 deg F
- Designed to reduce incoming water pressure to protect plumbing systems
Standard Approvals
- ANSI A112.26.2
- ASSE Standard 1003
- CSA Standard B356
- IAPMO Listed
- MIL-V-18146B Type I
- NSF Approved
- Southern Standard Plumbing Code
- PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Videos
Body Material:
Cast Copper Silicon Alloy
Domestic/Import:
Domestic
End Style:
FNPT Union x FNPT
Inlet to Outlet Length:
8-3/4 in
Media:
Water
Nominal Size:
1 in
Pressure Range:
25 to 75 psi
Softgoods Material:
Reinforced EPDM Diaphragm/Polymer Seat
Temperature Rating:
33 to 160 deg F
Top to Inlet Center:
9 in
