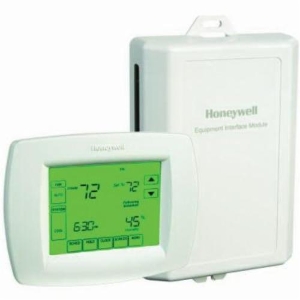

Brand | Honeywell |
MFR Part No | YTH9421C1002/U |
TSCO Part Number | 423990 |
- Features
- Specifications
- Documents
Warranty Length
- Limited
Features
- Advanced dual fuel control
- Three wires to the living space allows for easy equipment upgrade without having to run additional thermostat wire
- Thermostat connects with equipment interface module or EnviraZONE panel to control temperature, humidification, dehumidification and ventilation from a single point in the home
- Automatically raises humidity levels throughout all rooms in the home, moisturizing air to prevent symptoms of dryness and to protect hardwood flooring and woodwork
- Removes air pollutants by exchanging the stale air in a house with fresh, filtered air better than having an open window
Control Range:
40 to 90 deg F
Fan Switching:
Auto/On/Circulate
Finish:
Premier White®
Humidity Range:
5 to 90% Non-Condensing
Mounting Type:
Horizontal
Number of Stages:
6
Power Source:
Lithium Battery
Stages Cool:
2 Heat Pump, 2 Conventional
Stages Heat:
4 Heat Pump, 3 Conventional
System Switching:
Heat/Cool/Auto/Off
Terminal Designations:
1, 2, 3, C, R, RC, RH, R, W1-O/B, W2-AUX, W3-AUX2, Y, Y2, G, L, OUT1, OUT2, IN1, IN2, DATS1, DATS2, HUM1, HUM2, DHM1, DHM2, VNT1, VNT2
Thermostat Type:
Programmable
Voltage Rating:
20 to 30 VAC
