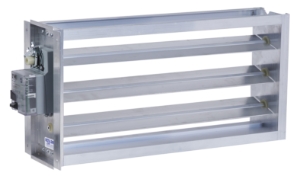

EWC® Ultra-Zone™ 8X10 ND Series Motorized Zone Damper, 8 x 10 in Damper, 24 VAC, 50/60 Hz
EWC® Controls

EWC® Ultra-Zone™ 8X10 ND Series Motorized Zone Damper, 8 x 10 in Damper, 24 VAC, 50/60 Hz

BrandEWC® Controls
MFR Part No8X10 ND
TSCO Part Number413028

Features

  • The ND damper is constructed using heavy duty 0.8 in extruded aluminum
  • Glass filled nylon bearings for quiet, maintenance free operation
  • Overlapping parallel blade design insures low leakage
  • The UL listed motor actuator is a 24 VAC 3 wire power-open/power-close type
  • Superior to low torque spring type motors
  • Integrated end stop adjustments allows for a percentage of relief air (leakage) to be set when the damper is powered to closed and/or you may set a max open position as well
  • Bright green and red LED's indicate damper open and closed position
  • Use with BM and BMPlus control panel
