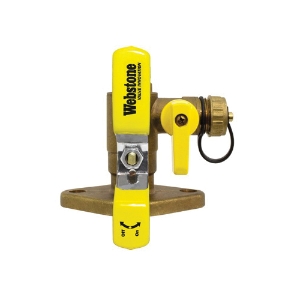

Webstone The Isolator® 50415 5041 Standard Uni-Flange Ball Valve, 1-1/4 in Nominal, C x Flange End Style, Forged Brass Body, Full Port, EPDM/PTFE Softgoods
| Brand | Webstone® |
| MFR Part No | 50415 |
| TSCO Part Number | 406214 |
- Features
- Specifications
- Documents
Warranty Length
- Lifetime
Features
- Easily Isolates the Pump for Replacement
- Prevents Electrolysis and Eliminates Galvanic Corrosion
- Flange Features a Conical Inlet to Minimize Turbulence
- Multi-Function Drain Makes the Isolator the Only Valve That Drains From Either Side of the Pump
- Fits Virtually Any Standard Circulator Pump
- Saves 63 min
- Replaces 8 Components
- This valve is actuated by a blowout proof stem
Standard Approvals
- ASME B16.18
- ASME B16.18 Annex A
- PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Actuator Type:
Wing Style T-Handle
Ball Material:
HCP Brass
Body Material:
Forged Brass
Domestic/Import:
Import
End Style:
C x Flange
Finish:
Brass
Inlet to Outlet Length:
4-3/4 in
Media:
Glycol Mixture/Oil/Water
Nominal Size:
1-1/4 in
Orifice Size:
1-1/4 in
Port Type:
Full
Pressure Rating:
600 psi CWP
Softgoods Material:
EPDM/PTFE
Temperature Rating:
100 deg F
Top to Inlet Center:
2-7/8 in
Trim Material:
Brass/PTFE
Type:
Standard Uni-Flange
