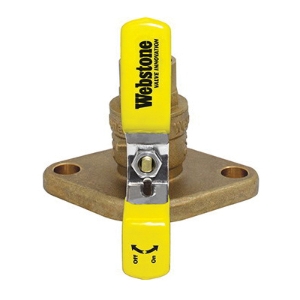

Webstone The Isolator® 50403 5040 Standard Uni-Flange Ball Valve, 3/4 in Nominal, C x Flange End Style, Forged Brass Body, Full Port, PTFE Softgoods
| Brand | Webstone® |
| MFR Part No | 50403 |
| TSCO Part Number | 406206 |
- Features
- Specifications
- Documents
Warranty Length
- Lifetime
Features
- Easily Isolates the Pump for Replacement
- Prevents Electrolysis and Eliminates Galvanic Corrosion
- Flange Features a Conical Inlet to Minimize Turbulence
- Fits Virtually Any Standard Circulator Pump
- Saves 18 min
- Replaces 3 Components
- This valve is actuated by a blowout proof stem
- Adjustable Packing Gland
Standard Approvals
- ASME B16.18
- ASME B16.18 Annex A
- PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Actuator Type:
Lever Handle
Ball Material:
Brass
Body Material:
Forged Brass
Domestic/Import:
Import
End Style:
C x Flange
Inlet to Outlet Length:
2-9/16 in
Media:
Glycol Mixture/Oil/Water
Nominal Size:
3/4 in
Orifice Size:
3/4 in
Port Type:
Full
Pressure Rating:
600 psi CWP
Softgoods Material:
PTFE
Temperature Rating:
100 deg F
Top to Inlet Center:
2-1/16 in
Trim Material:
Brass/PTFE
Type:
Standard Uni-Flange
