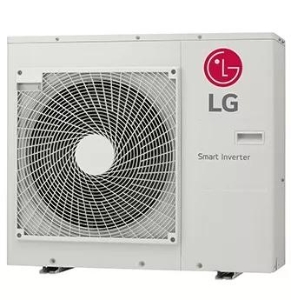

LG LMU240HHV Heat Pump Outdoor Unit, 26000 Btu/hr Heating, 24000 Btu/hr Cooling, 208-230 V, 1 phase, 60 Hz, 21 SEER, 13.5 EER, 10.7 HSPF, R410A
| Brand | LG |
| MFR Part No | LMU240HHV |
| TSCO Part Number | 403672 |
- Features
- Specifications
- Documents
Features
- Auto operation
- Auto restart
- Defrost/Deicing
- Inverter (variable speed Compressor)
- Low ambient operation to 14F (cooling mode)
- Restart delay (3-minutes)
- Self Diagnosis
- Soft start
- Factory installed Drain Pan Heater
Standard Approvals
- AHRI Certified
- cETLus Listed
- ENERGY STAR Certified
Compressor Type:
Twin Rotary
Cooling Capacity:
24000 Btu/hr
Dimensions:
37-13/32 in W x 32-27/32 in H x 13 in D
EER Rating:
13.5
Flow Rate:
2295 cfm
Fuse Size:
15.73 A
Heating Capacity:
26000 Btu/hr
HSPF Rating:
10.7
Liquid Line Size:
1/2"
Maximum Piping Length:
246.1 ft
Mounting Type:
Wall
Power Source:
208/230 VAC, 1 ph, 60 Hz
Refrigerant Type:
R-410A
SEER Rating:
21
Series:
Multi with LGRED
Sound Level:
55 dBA
Suction Line Size:
1/4 in
Voltage Rating:
208-230 V
Commercial/Residential:
Residential/Light Commercial
