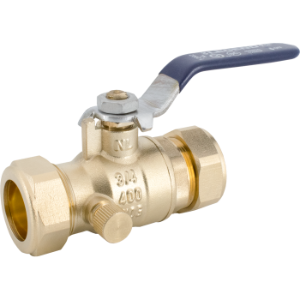

LEGEND® 101-434NL T-2002NL Ball Valve with Drain, 3/4 in Nominal, Compression End Style, Brass Body, Full Port
| Brand | LEGEND® |
| MFR Part No | 101-434NL |
| TSCO Part Number | 283145 |
- Features
- Specifications
- Documents
Warranty Length
- 5/25 Years
Features
- Full port ball valve with drain and compression ends for convenient installation onto copper tubing
- Dezincification resistant (DZR) forged brass resists corrosion from exposure to a wide variety of water conditions
- Bubble-tight shut-off and capped waste port permit isolation, drain down and servicing of the plumbing system, for maintenance or to prevent freeze-up
- Tubing compression connections permit easy, convenient, Lead free compliant replacement of a worn, leaded valve, without the need for sweating
- Lead free design is suitable for all no lead potable water installations in full compliance of all Lead free plumbing laws
Standard Approvals
- ANSI/NSF 61-G
- U.S. Federal Public Law 111-380
- MSS SP-110
Actuator Type:
Lever Operated
Ball Material:
Brass
Body Material:
Brass
Domestic/Import:
Import
End Style:
Compression
Finish:
Polished Chrome
Inlet to Outlet Length:
3.72 in
Media:
Water
Nominal Size:
3/4 in
Port Type:
Full
Pressure Rating:
400 psi
Top to Inlet Center:
1.86 in
Trim Material:
Brass Stem and PTFE Seat
