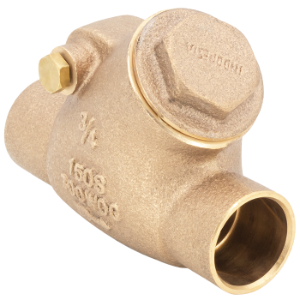

LEGEND 105-404 S-453 Y-Pattern Swing Check Valve, 3/4 in Nominal, C End Style, Bronze Body
| Brand | LEGEND |
| MFR Part No | 105-404 |
| TSCO Part Number | 283085 |
- Features
- Specifications
- Documents
Warranty Length
5 Years
Features
Heavy-duty, full-pattern bronze construction resists pipeline stresses and distortion|Y-pattern body permits exceptional flow rates, typically required in commercial applications|Large, integral seat and disc are tilted inward at 45 deg to minimize pressure drop|Uni-directional flow: can be installed in the horizontal (assembly cap upright) or vertical (upward flow only) positions|Forged brass hinge pin assures smooth, non-binding disc operation|Ideal for steam installations|Cast bronze construction|Cast bronze disc
Standard Approvals
ANSI/ASME B 16.18|ASTM B62 UNS C83600 Body/Disc|MSS SP 80
Body Material:
Bronze
Domestic/Import:
Import
End Style:
C
Nominal Size:
3/4 in
Flow Rate:
6.6 gpm
Pressure Rating:
300 psi CWP
Trim Material:
Cast Bronze
Inlet to Outlet Length:
3.41 in
Low Lead Compliance:
No
Port Type:
Full
Top to Inlet Center:
2.01 in
