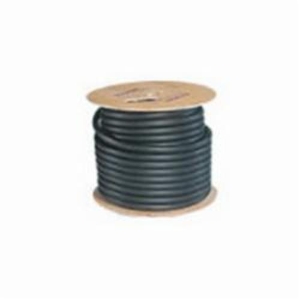

TracPipe® Counterstrike® FGP-UGP-750-250 PS-II Underground Gas Pipe, 3/4 in, 300 Stainless Steel, 250 ft Reel L
| Brand | TracPipe® Counterstrike® |
| MFR Part No | FGP-UGP-750-250 |
| TSCO Part Number | 260159 |
- Features
- Specifications
- Documents
Warranty Length
- 1 Year Limited
Features
- Black jacketed pre-sleeved flexible gas piping approved for direct burial in underground natural gas and liquefied petroleum (propane) gas applications, used with TracPipe® PS-II male adapter fittings or couplings
- Semi-rigid tubing
- Fully vent-capable polyethylene sleeve
- 2400 deg F tubing melting point
- 350 deg F jacket melting point
- UV/Ozone resistant polyethylene jacket
- 1-3/4 in L jacket strip
- CSA international evaluation report - 125 psig max operating pressure, 3/8 in through 1-1/4 in
- Must be installed in accordance with the TracPipe® design guide and installation instructions and all applicable codes
Standard Approvals
- ANSI LC1/CSA 6.26
- ANSI Z223.1
- ASTM A240
- CAN/CSA B149.1
- IAPMO (UPC) File No. 4665
- ICC Codes (IFGC/IMC/IPC/IRC)
- ICC PMG 1052
- NFPA 54/58
- UL Listed
- UPC Listed
Domestic/Import:
Domestic
End Style:
TracPipe® PS-II/CounterStrike®
Inside Diameter:
0.82 in
Length:
250 ft Reel
Material:
300 Stainless Steel
Nominal Size:
3/4 in
Outside Diameter:
1.32 in
Specifications:
ANSI LC1/CSA 6.26, ANSI Z223.1, ASTM A240, CAN/CSA B149.1, IAPMO (UPC) File No 4665, ICC Code (IFGC, IPC), ICC PMG 1052, NFPA 54/58, UL Listed, UPC Listed
Temperature Rating:
-20 to 200 deg F
Wall Thickness:
0.01 in
Working Pressure:
25 psi
