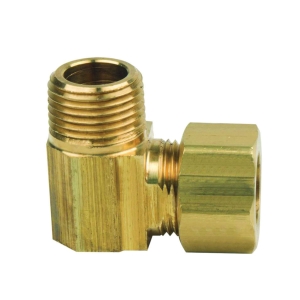

BrassCraft® 1/2X3/8 COMPR-MIP ELBOW BRASS
Part #:
257707
MFG #
69-8-6X
Brand:
BrassCraft®
- Description
- Specifications
- Features
- Documents
Tube Reducing Elbow, Series: 69 Series, 90 deg Elbow Fitting/Connector, 1/2 x 3/8 in Nominal, Compression x MNPT End Style, 0.032 in Thickness, 200 psi Pressure, -65 to 250 deg F, Brass, Rough, Domestic
Domestic/Import:
Domestic
End Style:
Compression x MNPT
Finish:
Rough
Material:
Brass
Nominal Size:
1/2 x 3/8 in
Pressure Rating:
200 psi
Temperature Rating:
-65 to 250 deg F
Thickness:
0.032 in
Fitting/Connector Type:
90 deg Elbow
Features
Manufactured from low lead compliant brass For use with potable water, many different types of instrumentation applications, hydraulic and pneumatic systems Designed to be used with aluminum, copper and plastic tubing, not for use with steel tubing Plastic tubing requires 63PT insert and 60PT sleeve
Standard Approvals
