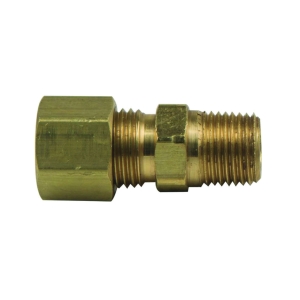

BrassCraft® 1/4 in. O.D. Compression x 1/8 in. MIP No-lead Brass Compression Male Reducing Adapter Fitting
Part #:
257654
MFG #
68-4-2X
Brand:
BrassCraft®
- Description
- Specifications
- Features
- Documents
Tube Reducing Adapter, Series: 68 Series, Fitting/Connector Type: Adapter, 1/4 x 1/8 in Nominal, Compression x MNPT, 0.03 in Thickness, 7/16 in Hex, 300 psi, -65 to 250 deg F, Brass, Rough, 0.19 in ID, Domestic
Domestic/Import:
Domestic
End Style:
Compression x MNPT
Finish:
Rough
Material:
Brass
Nominal Size:
1/4 x 1/8 in
Pressure Rating:
300 psi
Temperature Rating:
-65 to 250 deg F
Thickness:
0.03 in
Fitting/Connector Type:
Adapter
Hex Size:
7/16 in
Features
Does not require any flaring, soldering or other type of tubing preparation Manufactured from low lead compliant brass For use with potable water, many different types of instrumentation applications, hydraulic and pneumatic systems Designed to be used with aluminum, copper and plastic tubing, not for use with steel tubing Plastic tubing requires 63PT insert and 60PT sleeve
Standard Approvals
PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
