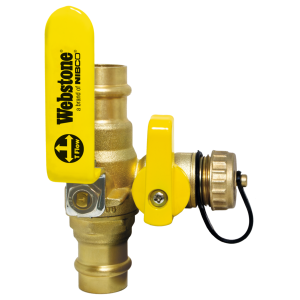

Webstone Pro-Connect Press™ Clean Brass™ Ball Drain™ 80615 Pro-Pal® 8061 Standard Ball Valve, 1-1/4 in Nominal, Press End Style, Forged Brass Body, Full Port, EPDM/PTFE Softgoods
| Brand | Webstone® |
| MFR Part No | 80615 |
| TSCO Part Number | 1227482 |
- Features
- Specifications
- Documents
Warranty Length
- Lifetime
Features
- Reversible handle for added versatility
- Press connections compatible with popular press tools
- Winterize an entire building with simple quarter-turn actions
- EPDM washer
- Blow-out proof stem
- Replaces 4 components, eliminates 3 leak paths, saves 27 min of labor
- Exclusive adjustable flow path allows for draining from either side of the ball
- Eliminate three leak path
- Eliminate assemblies needed to isolate and drain any portion of a piped system
- PTFE packing stem and EPDM O-ring
- With hi-flow hose drain
- Replace four component
Standard Approvals
- ISO 9001
- PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Videos
Actuator Type:
Reversible Handle
Ball Material:
Chrome Plated Brass
Body Material:
Brass
Color:
Brass
Domestic/Import:
Import
End Style:
Press
Inlet to Outlet Length:
5-1/2 in
Media:
Gas/Oil/Water
Nominal Size:
1-1/4 in
Orifice Size:
3/4 in
Port Type:
Full
Pressure Rating:
250 psi CWP
Softgoods Material:
PTFE/EPDM
Temperature Rating:
250 deg F
Top to Inlet Center:
3 in
Trim Material:
Brass Stem and PTFE Seat
Type:
Standard
