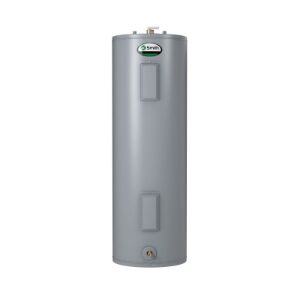

AO Smith® 100297810 LTE-66 Commercial Water Heater, 66 gallon Tank, 12000 W Power Rating, 277 V, 1 phase, Tall, 44.04 A
| Brand | AO Smith® |
| MFR Part No | 100297810 |
| TSCO Part Number | 1209334 |
- Features
- Specifications
- Documents
Warranty Length
- 6 Years Tank/1 Year Parts
Features
- Designed for light duty commercial applications
- Dual 6100 W zinc plated copper sheathed elements
- CoreGard anode rods with stainless steel core provide additional corrosion protection
- Enhanced-flow commercial-grade brass drain valve designed for durability, ease of maintenance and operation
Standard Approvals
- ASHRAE/IES 90.1
Amperage Rating:
44.04 A
ASME Yes/No:
No
Dimensions:
60-1/4 in H x 22 in W x 22 in Dia
Finish:
Baked Enamel
Heating Element:
Zinc Plated Copper Sheath
Height:
64"
Length:
24.5"
Phase:
1
Power Rating:
12000 W
Pressure Rating:
150 psi
Series:
LTE-66
Tall or Short:
Tall
Tank Capacity:
66 gal
Temperature Rating:
120 to 181 deg F
Type:
Commercial
Voltage Rating:
277 V
Water Connection:
3/4 in FNPT
Width:
21.5"
Height:
64"
