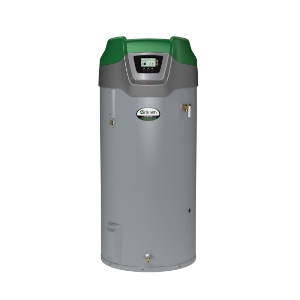

AO Smith® Vertex™ 100210492 GDHE-75 Gas Water Heater, 100000 Btu/hr Heating, 75 gallon Tank, Liquid Propane Fuel, Direct/Power Vent, Condensing, 129 gph at 90 deg F Recovery, Tall
AO Smith®

AO Smith® Vertex™ 100210492 GDHE-75 Gas Water Heater, 100000 Btu/hr Heating, 75 gallon Tank, Liquid Propane Fuel, Direct/Power Vent, Condensing, 129 gph at 90 deg F Recovery, Tall

BrandAO Smith®
MFR Part NoGDHE-75LP
TSCO Part Number105949

Warranty Length

  • 6 Years Limited Tank and Component Parts

Features

  • Helical internal heat exchanger - Spiral heat exchanger keeps hot combustion gases in the tank longer to lengthen the heat transfer cycle, positioned in the center of the tank for more even heat distribution
  • Operates at 96% thermal efficiency, which saves money on operating costs compared to a standard 80% efficient gas water heater
  • Power direct vent design - Combined vertical and horizontal runs terminating through an outside wall
  • Vents using PVC, CPVC or polypropylene pipe, Canadian installations require ULC S636 approved PVC CPVC or polypropylene pipe for venting
  • Side-mounted hot and cold recirculating taps - Allows vertex to be installed as part of combination space heating/water heating applications
  • Advanced electronic control - Large LCD display, precise temperature control, advanced diagnostics, iCOMM™ compatible and can be monitored from remote locations
  • Blue Diamond® glass coating - Provides superior corrosion resistance compared to industry standard glass lining
  • Top fired ultra-low NOx gas burner - Enhanced ultra-low NOx burner complies with SCAQMD rule 1146.2 and other air quality management districts with similar requirements for NOx emissions of less than 14 ng/j
  • Certified for sea level to 10100 ft elevation

Standard Approvals

  • ANSI Z21.10.3 CSA 4.3
  • Meets UBC
  • CEC and HUD National Code
  • Meets the thermal efficiency and standby loss requirements of the US Department of Energy and current edition of ASHRAE/IES 90.1
  • ANSI Z21.10.1-CSA 4.1
  • CSA Certified and ASME Specified T and P Relief Valve
  • Star Design Certified
