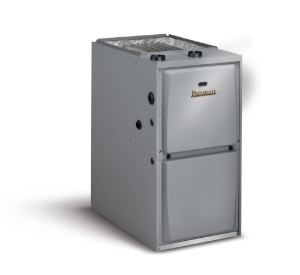

Ducane™ 18L94 96G2UH090CV12 96G2V 2-Stage Gas Furnace, Upflow/Horizontal, 90000 Btu/hr Input, 55000` Btu/hr Output, 120 V, 96% AFUE, 1200 cfm Flow Rate, Variable Speed ECM Motor
| Brand | Ducane™ |
| MFR Part No | 18L94 |
| TSCO Part Number | 1059289 |
- Features
- Specifications
- Documents
Warranty Length
- 10 years Limited on Parts and Lifetime Limited on Heat Exchanger
Features
- 96% AFUE efficiency rating saves you energy even during the coldest winter months
- ENERGY STAR® certification means you could be eligible for money-saving rebates
- Variable speed motor starts up slowly and then quietly accelerates to keep temperature and humidity perfectly controlled, while helping you save money on energy costs
- Robust aluminized steel heat exchanger is crimped, not welded, for increased durability and safety when burners are ignited
- 2-stage operation adjusts heat output based on indoor and outdoor temperatures to optimize comfort and energy usage
Standard Approvals
- AHRI Certified
- CSA Certified
- EnergyStar® Certified
AFUE Rating:
96 %
Air Flow Type:
Upflow/Horizontal
Connection Size:
1/2 in
Cooling Capacity:
3.0 Ton-blower
Flow Rate:
1200 cfm
Furnace Position:
Upflow/Horizontal
Fuse Size:
15 A
Heating Capacity:
90,000 Btu/hr
Ignition Type:
Silicon Nitride
Input Capacity:
90000 Btu/hr
Low NOX:
No
Material:
Aluminized Steel
Motor HP:
1/2 hp
Motor Type:
Variable Speed ECM
Output Capacity:
55000` Btu/hr
Voltage Rating:
120 V
Height:
35.0
Efficiency:
96.0 AFUE
Height:
35.0
Net Weight:
153.0
Width:
32.5
