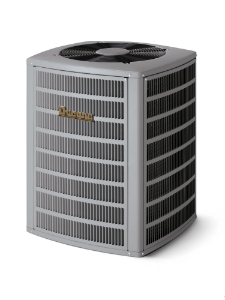

Ducane™ 4AC16LT60P 2-Stage Louvered Split System Air Conditioner, 5 Ton Cooling, 208-230 V, 33.8 A, 1 Phase, 60 Hz, 16 SEER
| Brand | Ducane™ |
| MFR Part No | 1.351017 |
| TSCO Part Number | 1057795 |
- Features
- Specifications
- Documents
Warranty Length
- 10 years Limited on Parts and Compressor
Features
- Heavy duty compressor sound blanket lowers operating noise, so you can enjoy peace and quiet
- Permanently lubricated condenser fan motor needs no annual maintenance
- 2-stage compressor runs at a lower speed most of the time to keep you cool all summer long, while reducing energy costs, humidity and sound levels
Standard Approvals
- AHRI Certified
- cETLus Listed
- ETLC Listed
Amperage Rating:
33.8
Control Type:
TXV
Cooling Capacity:
60000 Btu/hr
Discharge Line Size:
3/8 in
EER Rating:
14
Flow Rate:
1800 cfm
Frequency Rating:
60 Hz
Fuse Size:
55 A
Heating Capacity:
No Heating Capacity
Motor HP:
1/4 hp
Motor RPM:
825 rpm
Motor Type:
Condenser Fan
Mounting Type:
Grommet
Nominal Capacity:
5 ton
Number of Phases:
1
Power Source:
208/230 VAC, 33.8 A, 1 ph, 60 Hz
Refrigerant Type:
R-410A
SEER Rating:
16
Sound Level:
76 dBA
Suction Line Size:
1-1/8 in
Temperature Rating:
125 deg F
Voltage Rating:
208/230v 1ph 60 hz
Height:
45.0
Efficiency:
16.0 SEER
Length:
34.0
Net Weight:
200.0
Width:
32.5
