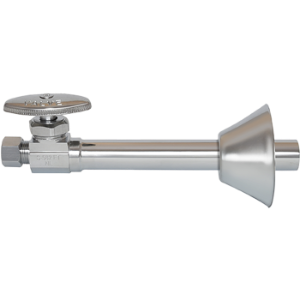

LEGEND 114-213NL S-582NL (R-14) Multi-Turn Straight Supply Stop Valve, 1/2 x 3/8 in Nominal, C x Compression End Style, 110 psi Pressure, Brass Body, Polished Chrome
Part #:
083061
MFG #
114-213NL
Brand:
LEGEND
- Description
- Specifications
- Features
- Documents
LEGEND Straight Supply Stop Valve, Lead Free Multi-Turn, Series: S-582NL (R-14), 1/2 x 3/8 in Nominal, C x Compression, 110 psi, Media: Water, Brass Body, Forged Brass Trim, EPDM, 1.88 in L, Polished Chrome
Body Material:
Brass
Domestic/Import:
Import
End Style:
C x Compression
Finish:
Polished Chrome
Media:
Water
Nominal Size:
1/2 x 3/8 in
Pressure Rating:
110 psi
Softgoods Material:
EPDM
Trim Material:
Forged Brass
Application Type:
For Potable Water Installations
Warranty Length
5/25 years
Features
Lead free design is suitable for all no lead potable water installations in full compliance of all lead free plumbing laws|Each stop is individually packaged, preventing connection component loss and protecting the stop from contamination|Thermoplastic stems (except sweat configurations) resist scale and debris build-up better than metallic stems, even in hard water conditions|Traditional compact lead free brass body is machined from a single piece of barstock, providing the highest level of durability and strength|Polished chrome brass handle screw, polished chrome die-cast brass handle polished chrome forged brass bonnet EPDM rubber stem packing, stainless steel anti-friction packing support washer, polished chrome lead free forged brass stem, polished chrome forged brass compression nut , lead free forged brass compression ferrule, EPDM rubber seat washer, lead free polished chrome forged brass body|Forged brass body|EPDM rubber seat washer
Standard Approvals
ANSI/NSF Standard 61-G|ANSI/ASME B1.20.1 (FNPT)|ANSI/ASME B16.18 (CTS Solder)|PROP 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov|UPC/IAPMO Listed|U.S. Federal Public Law 111-380
