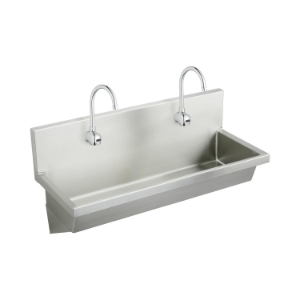

Elkay® EWMA4820SACMC Handwash Sink Package, Rectangle Shape, 20 in W x 8 in D x 48 in H, Wall Mount, Stainless Steel, Buffed Satin
| Brand | Elkay® |
| MFR Part No | EWMA4820SACMC |
| TSCO Part Number | 049847 |
- Features
- Specifications
- Documents
Features
- 14-gauge, Type 304 stainless steel.
- 1/4" coved corners.
- 1-1/2 in wide inward sloping top channel rims with 2" flat apron.
- 10" high, full-length backsplash.
- Square rim corners.
- 3-1/2" drain opening.
- Exposed surfaces are blended by hand to a uniform lustrous finish.
- Furnished with wall hanger and stainless steel support brackets.
- KIT INCLUDES: EWMA4820 sink, two LKB722C AC/battery-powered sensor faucets, two LK724 mechanical mixing valves, and one LK18B grid drain.
Standard Approvals
- ASME A112.19.3/CSA B45.4
- ASME A112.18.1/CSA B125.1
- ASME A112.18.2/CSA B125.2
- BUY AMERICAN ACT
- ADA & ICC A117.1
- NSF 61/372
- ADA & ICC A117.1
Bowl Size:
45 in L x 16-1/2 in W x 8 in H
Drain Opening Size:
3-1/2 in
Faucet Hole Drilling:
1-1/4 in
Finish:
Buffed Satin
Material:
Stainless Steel
Mounting Type:
Wall
Number of Basins:
1
Number of Faucet Holes:
2
Overall Dimensions:
20 in W x 8 in D x 48 in H
Shape:
Rectangle
Sink Type:
Handwash
