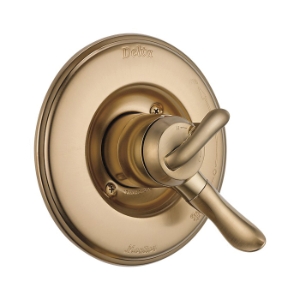

DELTA® T17094-CZ Monitor® 17 Valve Trim, 2 gpm Shower, Champagne Bronze
| Brand | DELTA® |
| MFR Part No | T17094-CZ |
| TSCO Part Number | 029615 |
- Features
- Specifications
- Documents
Warranty Length
- Limited Lifetime
Features
- Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
- Back-to-back installation capability
- Field adjustable to limit handle rotation into hot water zone
- Maximum diameter rotation adjustable between 90 deg and 180 deg
- All parts are replaceable from the front of the valve
- Stem extension kit RP77992 can be ordered to allow for an additional 1-3/4 in wall thickness
- For special finishes also order RP12630 escutcheon screws in desired finish
- Dual function Pressure Balance control - Handle adjusts volume - Dial adjusts temperature
- Available in chrome, Aged Pewter, Brilliance Stainless or Champagne Bronze
Standard Approvals
- ADA Compliant
- ANSI A117.1
- ASSE 1016
- ASME A112.18.1
- CSA B125.1
- ICC Compliance
Collection:
Linden™
Domestic/Import:
Domestic
Finish:
Champagne Bronze
Handle Type:
Lever
Material:
Brass
Number of Spray Functions:
2
Pressure Rating:
80 psi
Series:
Monitor® 17
Shower Flow Rate:
2 gpm
Suitable For Use With:
MultiChoice® R10000 Series Universal Rough-In Valve Body
Trim Size:
6-3/8 in Dia
Valve/Cartridge Type:
1222 Pressure Balanced
