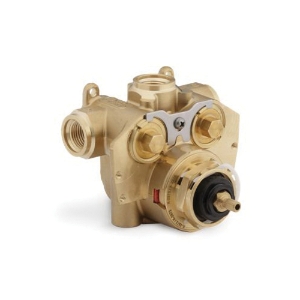

Kohler® 2972-KS-NA MasterShower® High Flow Thermostatic Valve, 1/2 in FNPT Inlet x 1/2 in FNPT Outlet, 45 psi Pressure, 10.9 gpm Flow Rate, Brass Body
Brand | Kohler® |
MFR Part No | 2972-KS-NA |
TSCO Part Number | 025780 |
- Features
- Specifications
- Documents
Warranty Length
- Limited Lifetime
Features
- Thermostatic technology automatically maintains outlet temperature during water pressure fluctuations or inlet water temperature changes
- Single handle temperature control
- (1) 1/2 in FNPT outlet connection
- Service stops with integral filters
- Provides automatic anti-scald protection
- Adjustable comfort setting (preset at approximately 104 deg F)
- Integrated Adjustable high-temperature limit stop to control maximum water temperature
- Fully-serviceable from the front of the valve
- Forged de-zincification resistant brass body provides long term reliability and resistance to aggressive water conditions
Standard Approvals
- ASME A112.18.1/A112.1016
- ASSE 1016
- CSA B125.16/B125.1
Body Material:
Brass
Collection:
MasterShower®
Commercial/Residential:
Residential
Finish:
Not Applicable
Flow Rate:
10.9 gpm
Inlet Connection:
1/2 in FNPT
Installation Type:
Recessed
Material:
Brass
Outlet Connection:
1/2 in FNPT
Pressure Rating:
45 psi
Series:
MasterShower®
