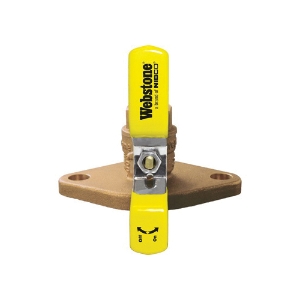

Webstone The Isolator® 40405 4040 Standard Uni-Flange Ball Valve, 1-1/4 in Nominal, FNPT x Flange End Style, Forged Brass Body, Full Port, PTFE Softgoods
| Brand | Webstone® |
| MFR Part No | 40405 |
| TSCO Part Number | 018852 |
- Features
- Specifications
- Documents
Warranty Length
- Lifetime
Features
- Heavy duty forged brass construction
- Ball valve with integral spring check saves labor, space, and leak paths
- Replace three component
- Unique uni-body design
- Replaces 3 components, eliminates 2 leak paths saves 18 min of labor
- Fits virtually any standard circulator pump
- Flange feature a conical inlet to minimize turbulence
- Easily isolate the pump for replacement
- Prevent electrolysis and eliminate galvanic corrosion
- Eliminate two leak path
- PTFE seat/stem seal
- This valve is actuated by a blowout proof stem
Standard Approvals
- ANSI B1.20.1
- PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- ANSI B1.20.1
Actuator Type:
Lever Handle
Ball Material:
Brass
Body Material:
Forged Brass
Domestic/Import:
Import
End Style:
FNPT x Flange
Finish:
Brass
Inlet to Outlet Length:
2-7/8 in
Media:
Glycol Mixture/Oil/Water
Nominal Size:
1-1/4 in
Orifice Size:
1-1/4 in
Port Type:
Full
Pressure Rating:
600 psi CWP
Softgoods Material:
PTFE
Temperature Rating:
100 deg F
Top to Inlet Center:
2-3/8 in
Trim Material:
Brass/PTFE
Type:
Standard Uni-Flange
