Part #:
399580
MFG #
08602506
Superseded
- Description
- Specifications
- Features
- Documents

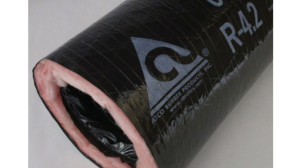

Atco Flexible Air Duct, Insulated, Series: 086 Series, 6 in Inside Dia, 25 ft Length, 5000 fpm, R6 Insulation Value, 0.17 perm Vapor Transmission, -1 to 6 in-WG, -20 to 140 deg F, Polyester/Polyethylene, Black
Application Type:
Low to Medium Pressure Heating, Air Conditioning Systems, Residential, Commercial and Indoor Applications
Domestic/Import:
Domestic
Finish:
Black
Inside Diameter:
6 in
Length:
25 ft
Material:
Polyester/Polyethylene
Flow Rate:
5000 fpm
Pressure Rating:
-1 to 6 in-WG
Temperature Rating:
-20 to 140 deg F
Insulation Value:
R6
Vapor Transmission:
0.17 perm
Features
Air-tight inner core - energy efficient/no fiberglass erosion into air stream|Encapsulated wire helix - no unraveling when cut to length, quick installation|Smooth inner core - low friction loss, low operating cost|Thick blanket of fiberglass insulation energy efficient/excellent thermal characteristics|Durable black polyethylene jacket - tear and puncture resistant/low maintenance|Lightweight compact carton reduces warehouse and jobsite handling cost|Polyethylene vapor barrier with scrim|2-ply polyester core
Standard Approvals
ADC Certified|ASTM C-518|Cities of Chicago|County of Dade (Florida)|California State Fire Marshal|GreenGuard Certified|HUD 515-2.1|ICC-ES ESR-1268|IMC Approved|IRC Approved|New York|NFPA 90A/90B|San Francisco|UL 181|UMC 10-1
